Description

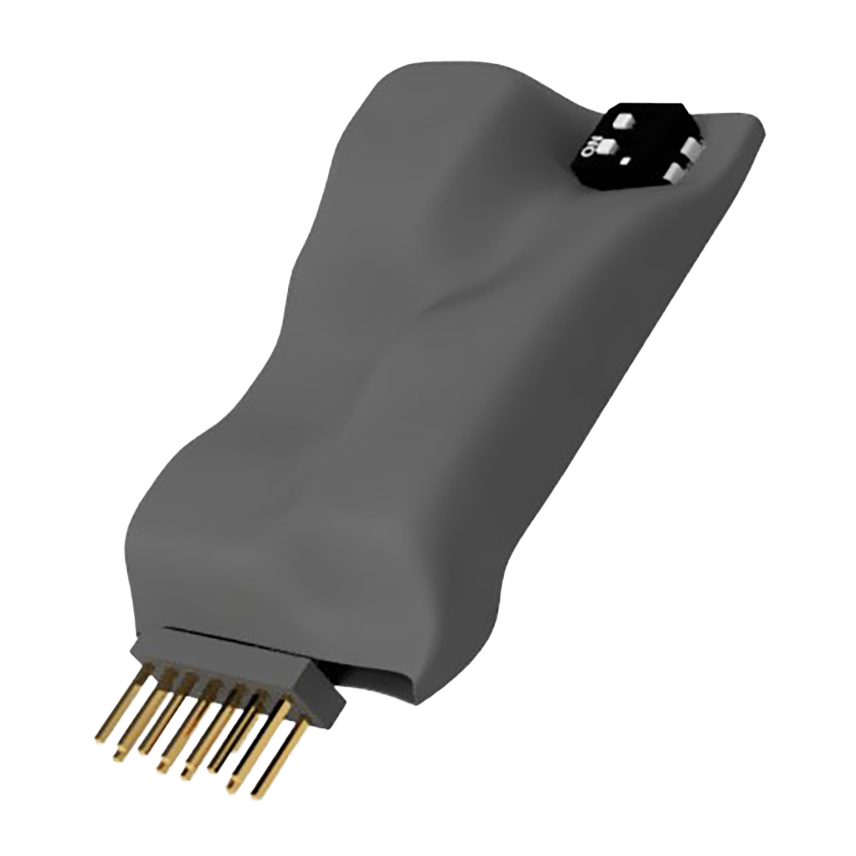

Constant Current Driver, Dimmable, 30W, Output: 75/150/300/600mA, 9-60Vdc
Description:
The L2-CC driver converts main PDM power into constant current regulated power. It plugs into a Power Distribution Module (PDM) Socket and sends power to one or more LEDs attached to the associated RJ45 Port. This is used for LED fixtures requiring constant current where a driver or regulator is not inside the bulb. This module does not require an L2-APR. Its output level is controlled by a Channel Zone Controller like an L2-DM, L2-SW, or L2-CH16. The L2-CC driver automatically adjusts its power output to maintain accurate current regardless of the length of Cat5/6 attached. This ensures consistent fixture intensity. Small LED lights can be connected in Series. LEDs in series must have an identical Current requirement of each other and the L2-CC current DIP switches must be set to match the LED current requirement. L2-CC are full range buck-boost drivers so the total attached LED voltage can be anywhere from the minimum to the maximum total voltage. Choose from 75mA, 150mA, 300mA, or 600mA current settings.
